SW3L/SW3H Screw Compressor

NO.SW3L-6000~7000/SW3H-7500~9000

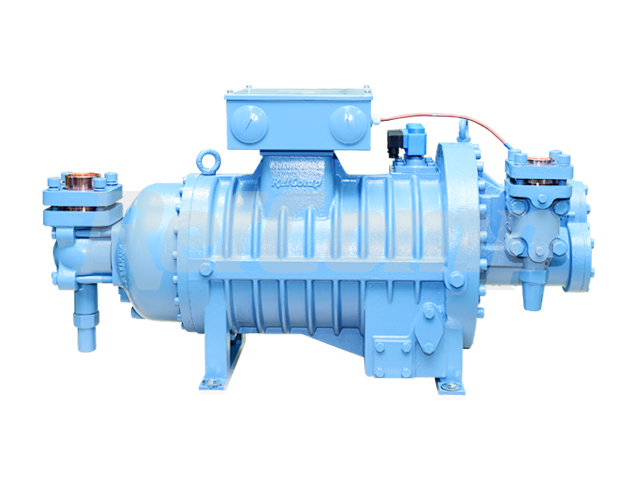

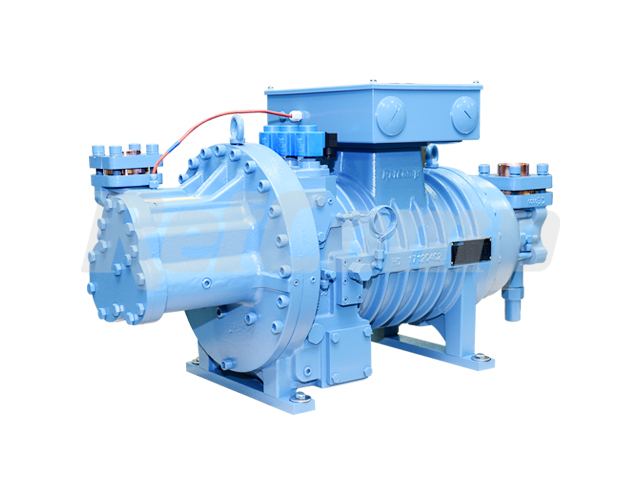

SW3L/SW3H Screw Compressor

NO.SW3L-6000~7000/SW3H-7500~9000

Product Description Technical Parameters

SW
Refcomp SW Semi- hermetic Screw Refrigeration Compressors include SW3H Series and SW3L Serieswith 28 models.Displacement:118- 700 m3/h (@ 50Hz), Nominal Power: 30- 240HP.Both SW3H and SW3L are for medium- high and lowtemperature refrigeration respectively, down to - 50℃ . Applicable freon refrigerants including R22, R134A, R507A, R404A, R407C.
Product features

●Asymmetric screw rotor designed by RefComp, loberatio profile 5/6, excellent lubrication, perfect meshingbetween teeth, smooth and quiet operation.
Small size, filter, cut- off valve, and temperature sensorare integrated into the compressor body. Optimizeddesign , less space required.
Motor protection module provides reliable protectionagainst motor overheating, phase reversal and phase loss.
Real- time tracking provides the operation status of themotor and system.
Multiple duplex bearings are able to avoid rotor axial /radial wear, resulting in high load and low noise.
Embedded suction filter.
Solenoid valve conducts capacity control, with step orstepless, in line with full or partial load.
Unique structure and space design, using subcooledrefrigerant gas between suction shut- off valve and theinlet side of the screw to effectively cool down the motor.
Suction/discharge shut- off valves are able to reverse360° , which is easily installed with flexibility.


Application scope

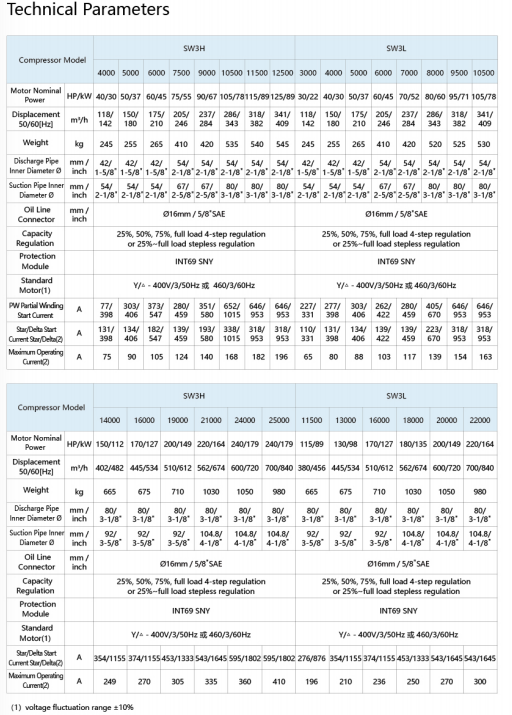

SW Technical Parameter List
